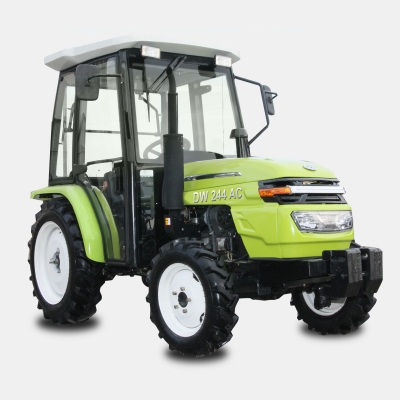

Mini tractor BW 244 AC < back

With different implements attached, our mini tractor BW244 AC can be used for agriculture and urban public utilities.

Technical Parameters:

• Rated Power (kw) - 17.4 (24hp)
• Wheel Type: 4 x 4
• Engine: Vertical, Double -Cylinder, Water-Cooled, 4-Stroke, Diesel Engine
• Starting Method: Electric
• Gearbox: (3+1) x 2
• Clutch: Dry, Single Plate
• Steering: Hydrostatic Power Steering
• PTO Shaft: 540rpm
• Overall Dimensions (L*W*H, mm): 2760x1514x1365
• Structural Mass (kg): 1130

Additional options:

• Suspension seat
• Integrated electronic instrument panel
• Rear view mirror
• The front wheel fenders
• Tool box
• Electrical outlet
• Independent hydraulic tank
• Independent hydraulic power steering pump
• Two additional valves of the hydraulic distributor
• Balance weight
